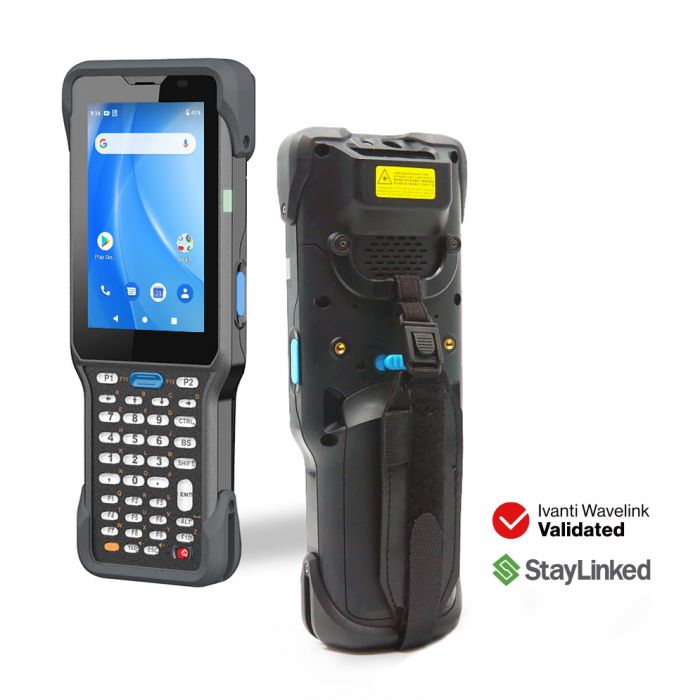

Unitech HT 730 (Android)
$3,125.00
In stock
SKU
SDT-UNI-HT730
The unitech HT730 is an ergonomic one-hand operation handheld terminal with keypad and powerful data collection solutions. Offering Android 10 OS with GMS certification, the HT730 is equipped with Qualcomm® Artificial Intelligence (AI) CPU to deliver users excellent performance for smarter, more intuitive interactions which is suitable to improve your work efficiency in a wide range of applications in warehousing, logistics, and field service.
Unitech HT730 (Android)
Android 10 (upgradable to Android 12) OS with GMS certified
• Superior 2D scanning performance:
- Standard version: Support 30-degree scanning tilt down
- Long range version: Supports 20m* reading distance
• Durable keypad: 38-key/29-key with 2.5 million lifetime clicks and key printing on the back of the keys
• Keypad with backlight design
• Ergonomic one-handed operation
• Support Bluetooth® 5.1
• Support IEEE 802.11a/b/g/n, 802.11ax-ready, 802.11ac Wave 2 with 2X2 MU-MIMO WLAN Standard
• 6700mAh battery for 20-26 hours operation**
• Hot swap battery design - without downtime
• 1.8m drop-resistant housing (2.4m with bumper)
• IP65/IP67 protection against water and dust
• Supports Unitech Orchestra Mobility Solutions & Unitech Utilities
• Supports: MoboLink, SOTI, 42Gears
Specifications
Operation System
- OSAndroid 10 (upgradable to Android 12)
- GMS certifiedGMS certified
- AER CertifiedOcta-core 2.3 GHz, Qualcomm 720G (SM7125)
AI Engine - Qualcomm 720G (SM7125)
Support 2.2 TOPS (2.2 trillion operations per second) - CPU4GB DDR4 RAM / 64GB Flash
- MemoryMulti-languages
Display
- Screen Size4”TFT-LCD WVGA (480x800) color screen (400 nits)
- TouchpanelUltra-sensitive capacitive touch screen, compatible with gloves and support wet resistance
Buttons / Keypad
- Buttons / KeypadFunction Numeric (38 keys) / Numeric (29 keys) with backlight.
Hard silicon material with key printing underneath the keys.
Side SCAN button x 2 (Left / Right)
(*For information about the Numeric (29 key), please contact Unitech Europe).
Camera
- CameraRear 13 MP Autofocus with flash
Indicator Type
- TypeLED, Speaker, Vibrator
Symbologies
- 1D Barcodes1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code
128, Code 32, Code 93, Codabar/NW7, Interleaved 2
of 5, Matrix 2 of 5, MSI, Trioptic, - 2D Barcodes2D : PDF417, MicroPDF417, GS1 Composite ,
Code11, Aztec Code, Data Matrix, QR Code, Micro
QR Code, MaxiCode, Han Xin Code, DOT Code
Postal: Intelligent Mail Barcode, Postal-4i, Australian
Post, Japanese Post, Netherlands (KIX) Post,
Postnet, Planet Code
OCR: OCR-A, OCR-B, E13B (MICR) - 2D Long RangeOnly available for Long Range reading version.
EX30 - Extra Long range 2D imager.
Reading distance up to 20m*.
*Reading distance depends on barcode type and density.
RFID
- UHF RFIDOnly available for UHF/RFID reading version.
UHF/Reader with 2D imager.
Frequency: 865~868MHz, 902~928MHz
Protocol: EPC global Class 1 Gen 2 ISO 18000-6C/6B
Antenna gain: 4dbi
Output Power : 1-30dbm adjustable
Reads up to 6m*.
*Reading distance depends on barcode type and density. - HF RFIDSupport HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard
Communication
- Bluetooth®Bluetooth 5.１
- WLAN802.11a/b/g/n, 802.11ax-ready, 802.11ac Wave 2
(Dual Antenna, 2X2 MU-MIMO support) - WWANOptional
LTE Advanced Support Up to CAT4
LTE (FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 17, 20, 28
LTE (TDD) – Bands 38, 39, 40, 41
UMTS/HSPA+ (3G) – Bands 1, 2, 5, 8
GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz) - GPSGPS, GLONASS, Galileo, BeiDou
- SensorsGyroscope, G-sensor, E-compass, Light & Proximity Sensor
I/O Interfaces
- USBUSB 3.1 (type-C) support USB OTG
Support Display Port Mode
Ethernet/USB-Host via cradle - OTGYes, over USB Type-C
- SIM SlotNano SIM Slot x 2
- Expansion SlotMicro SD/TF x 1(Support SD, SDHC and SDXC)
- Audio2W output,105 dB at 10cm, Dual-Microphone, support noise cancellation
Enclosure
- Dimensions ( H x W x D )195 mm x 72 mm x 34 mm
- Weight395g (with battery)
Durability
- Drop Specification1.8m / 2.4m (with Bumper)
- SealingIP65 / IP67
- Vibration and Shock test-20°C to +50°C
Environmental
- Storage temperature- 30°C to 70°C (without battery)
- Charging temperature0°C to 45°C
- Relative Humidity5% ~ 95% (non-condensing)
Power Source
- Main batteryMain battery 3.7V 6700mAh
Operating time 20-26 hours*
*Depending on type of operation and environment. - Hot SwapHot Swap battery keeps applications active up to 1 minute
RTC battery: yes
Software
- MDM SoftwareUnitech Orchestra Mobility Solution, MoboLink SOTI, 42Gears, AirWatch,
Ivanti Wavelink, VMware and StayLinked.
With Unitech Mobility Orchestra we bring four key elements together to turn a standard device into an enterprise managed work tool that composes of: 12Solutions, StageGo, UnitCare and MoboLink. Facilitate the management of your hardware investment with MoboLink Visibility or Standard version.
Regulatory Approvals
- Regulatory ApprovalsCE, FCC, NCC, IC, VCCI, TELEC, CCC, SRRC, RoHS, CEC, BQB, GMS, N-Mark
What comes in the box
- The standard package contents■ HT730 Terminal
■ Battery
■ Hand Strap
Accessories
- Accessories■ USB Type C cable
■ Single Slot Charging cradle
■ Single Slot Ethernet cradle with USB host
■ Single slot with VGA out
■ 4-Slot Charging cradle
■ 4-Slot Ethernet cradle
■ 4-Slot battery charger
■ Hand strap
■ Pistol grip
■ Stylus with coil strap
■ Battery
■ Glass Screen Protector
■ Power adapter for cradle
■ Power adapter for USB
■ 3-pin power cord
