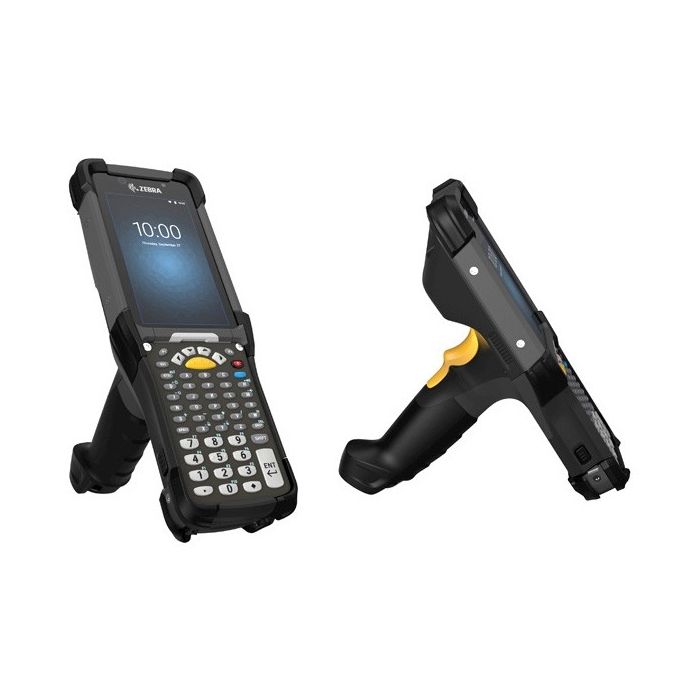

Zebra MC9300 (Android)
ULTRA-RUGGED DESIGN FOR EVERY ENVIRONMENT
The most rugged device in its class
When it comes to handling the harshest environments, the MC9300 is at the top of its class. The MC9300 is virtually waterproof, drop-proof, dust-proof and tumble-proof, offering superior reliability. You can depend on MC9300 for lumber yard, warehouse, and manufacturing operations, scanned data capture and processing.
With the next generation of the highly successful MC9300 in hand, scanning is easier than ever, with point and shoot simplicity for bar codes. The new high resolution backlit display is easy to view in any lighting — from the dim corners of a warehouse to the bright sunlight out on the loading dock or tarmac.
Includes Sierra DigiTally Mobile App License.
Includes 1 Sierra DigiTally Mobile App License.
Performance Characteristics
| CPU | Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz |
| Operating System | Android 11; upgradeable to Android 14 |
| Memory | 4 GB RAM/32 GB Flash pSLC |
Physical Characteristics
| Dimensions | 9.4 in. L x 3.5 in. W x 7.4 in. H 240 mm L x 88 mm W x 189 mm H |
| Weight | 26.9 oz./765g with battery |
| Display | 4.3 in. WVGA (800 x 480), color display |
| Imager Window | Corning Gorilla Glass |
| Touchpanel | Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); screen protector (sold separately); Corning Gorilla Glass with air gap (standard model) or optically bonded (freezer model). |
| Backlight | LED backlit display |
| Power | Rechargeable Li-Ion: 3.6V, 7000mAh, (Freezer Capacity battery — 5000mAh) Both batteries offer: PowerPrecision+ with improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management, fast charging (up to 2.4A); hot swap battery backup with temporary session persistence |
| Expansion Slot | User accessible MicroSD with 32GB SDHC and up to 256GB SDXC |
| Network Connections | USB 2.0 High Speed (Host & Client), WLAN and WPAN (Bluetooth) |
| Notification | Audible tone; Multi-color LED bar (between keyboard & display), haptic feedback |
| Keypad | Backlit, Field replaceable keypads; 58 Key Alpha-Numeric, 53 Key Alpha-Numeric STD, 53 Key Terminal Emulation (5250 and VT), 43 Key, 34 Key Numeric/Function, 29 Key Numeric/Calculation |
| Voice & Audio | Speaker, Microphone, PTT Voice (Internal Speaker and Bluetooth Wireless Headset Support). |
User Environment
| Operating Temp. | Standard: -4°F to 122°F/-20°C to +50°C, Freezer: -22°F to 122°F/-30°C to +50°C |
| Storage Temp. | -40°F to 158°F/-40°C to 70°C |
| Humidity | Standard: 5% to 95%, non-condensing; Freezer: 5% to 95%, condensing (Condensation resistant model with integrated exit window heater) |
| Drop Specification | Standard: 10 ft. (3.1m) drops at room temperature per MIL-STD-810G, 8 ft. (2.4m) drops to concrete across temperature per MIL-STD-810G Freezer: 7 ft. (2.1m) drops to concrete across temperature per MIL-STD-810G. |
| Tumble Specification | 6,000 3.3 ft. (1m) tumbles; meets and exceeds IEC tumble specification. |
| Sealing | IP67 and IP65 per applicable IEC sealing specifications |
| Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis |
| Thermal Shock | -40°F to 158°F (-40° C to 70°C) rapid transition |
| Electrostatic Discharge (ESD) | ± 15kVdc air discharge; ± 8kVdc direct discharge; ± 8kVdc indirect discharge |
Please consider adding a RapidScan Ruler for Tally Operations.
(*) To use the RapidScan feature, a RapidScan Tally Ruler is needed (not included in this package)
(**) To print barcoded labels, a barcode printer is needed (not included in this pac
